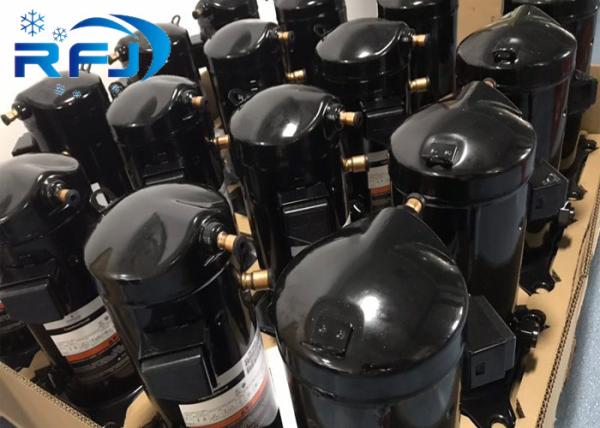

ZB95KQE-TFD 12hp Copeland Air Conditioning Compressor

Ask Lasest Price
Brand Name :	Copeland
Model Number :	ZB95KQE-TFD
Certification :	CE
Price :	discussed
Payment Terms :	T/T, D/A
Supply Ability :	1000PCS
Delivery Time :	1-5DAYS

Add to Cart

Product Details
Company Profile

ZB95KQE-TFD 12hp Copeland Air Conditioning Compressor

1. Product feature and applicatio

Refrigerant Freq (Hz) Phase Voltage Application

R-404A HFC 60 3 460 Medium Temperature

R-507 HFC 60 3 460

R-507 HFC 50 3 380/420

2. Production details

Specification	Copeland compressor ZB95KQE-TFD-551
Capacity(Btu/hr)	77900
Power(w)	11650
Current(A)	20.85
E.E.R	6.70
Mass flow(lbs/wh)	1645
Weight(lbs)	143
Refrigerant	R404A

Model of ZB95KQE-TFD-551 descrition:

1. Product introduction

1)Working R404 refrigerant.
2)Widely used in middle temperature refrigeration field.
3)380v/3ph/50hz
4)Horse power:13HP
5)Screw connection,with charging valve.

2. Product parameter(Specification)

R22.50HZ

Model NO	Cindensate Temperature	The evaporation temperature ℃(R22/50HZ)						Sets/Pallet
Model NO	Cindensate Temperature	-12	-10	-5	0	5	10	Sets/Pallet
ZB15KQ-PFJ	40	3300	3550	4350	5200	6250	7400	16
ZB21KQ-PFJ	40	4650	5050	6200	7450	8850	10500	16
ZB26KQ-PFJ	40	5100	5500	6800	8200	9850	11700	16
ZB15KQ-TFD	40	3300	3550	4350	5200	6250	7400	16
ZB21KQ-TFD	40	4650	5050	6200	7450	8850	10500	16
ZB26KQ-TFD	40	5100	5500	6800	8200	9850	14070	16
ZB29KQ-TFD	40	6230	6790	8290	9970	11800	14400	16
ZB38KQ-TFD	40	7300	8000	9950	12200	14650	17300	16
ZB45KQ-TFD	40	9400	10200	12400	14900	17800	21000	16
ZB48KQ-TFD	40	10390	11285	13700	16436	19574	23199	16
ZB50KQ-TFD	40	10600	11660	14350	17400	20800	24700	12
ZB58KQ-TFD	40	11800	12950	16100	19600	19574	28000	12
ZB66KQ-TFD	40	13950	15100	18400	22200	26500	31500	12
ZB76KQ-TFD	40	16400	17800	21700	28500	30500	35500	12
ZB88KQ-TFD	40	18800	20400	24900	30000	36000	42000	12
ZB95KQ-TFD	40	19500	21400	26500	32000	38200	45200	12
ZB114KQ-TFD	40	23200	25500	31700	38500	41600	54500	12
