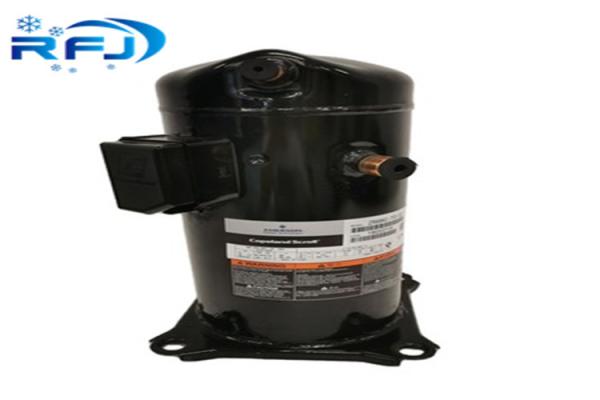

    ZR48K3E-PFJ-522 R404a Refrigerant Copeland Scroll Compressors

    Ask Lasest Price
    Brand Name : Copeland
    Model Number : ZR48K3E-PFJ-522
    Certification : CE
    Price : usd500/pc
    Payment Terms : T/T, Western Union
    Supply Ability : 500pcs/month
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

    ZR48K3E-PFJ-522 R404a Refrigerant Copeland Scroll Compressors

    ZR Series Low Price Copeland Scroll Compressors ZR48K3E-PFJ-522 for High efficiency


    1.Products introdutions:


    1. Wide scroll line-up
    2. Low oil circulation rate
    3. Low sound and vibration level
    4. High efficiency for saving energy consumption
    5. Refrigerant: R22/R410A/R407C/R134a/R404A/R507
    6. Certification: CE


    brandcopeland
    modelZR48K3E-PFJ-522
    horse power4
    refrigerantR410a
    power source220v/240V
    Phase1
    ColorBlack
    ConnectionRotolock
    TYPECOPELAND SCROLL COMPRESSOR
    MOQ1

    2.Detail introduction:

    MODELHPCAPACITY(W)INPUT POWER(KW)INPUT CURRENT(A)NET WEIGHT(KG)HEIGHT(MM)SUCTION
    ZR24K3-TFD-522259201.874.325.938319/12
    ZR28K3-TFD-5222.569102.15526.338319/12
    ZR34K3-TFD-5222.882002.525.72840619/12
    zr36KC-TFD-522389002.75.72840619/12
    ZR42K3-TFD-5223.5101003.127.128.641919/12
    ZR47K3-TFD-5224115003.537.228.643622/12
    ZR54KC-TFD-5224.5129004.038.735.445722/12
    ZR57KC-TFD-5224.8137004.168.735.445722/12
    ZR61KC-TFD-5225146004.431035.845722/12
    ZR68KC-TFD-5225.8164004.9712.138.145722/12
    ZR72KC-TFD-5226174005.2512.138.145122/12
    ZR81KC-TFD-5226.8196905.831540.946222/22
    ZR84KC-TFD-5227203306.141556.749722/22

    3.Technical data:
    Nominal motor power [HP]: 4
    Displacement [m³/h]: 11,5
    Sound pressure level : 57
    Gross/Net weight [kg]: 33/31
    Oil charge [dm³]: 1,4


    4.Electrical data:
    Power supply [V/~/Hz]: 220-240/1/50Hz
    Locked rotor current [A]: 114
    Max. operating current [A]: 23,5
    Winding resistance [Ω]: 1,70/0,60
    Connections milimeters inches Suction Rotolock valve connection: - Discharge Rotolock
    valve connection: - Suction connection with supplied sleeve: 7/8"
    Discharge connection with supplied sleeve: 1/2"


    5.Scroll Compressors:

    When Emerson first pioneered the use of scroll technology in compressors, it changed the industry forever. Since then, Copeland Scroll technology remains at the forefront
    for HVACR applications, impressing contractors and original equipment manufacturers (OEMs)
    with its superior efficiency, proven reliability and ease of installation.


    6.Efficiency:
    Approximately 35 percent of the electrical energy consumed each year in the United States is used by HVACR systems. Compressors
    make up a vast majority of the energy used in air conditioning and refrigeration systems. That means compressor selection is key to
    improving the overall efficiency of HVACR systems. The inherent design of Copeland Scroll compressors makes them a preferred choice
    for more energy-efficient systems. In fact, Copeland Scroll compressors play a key role in helping the industry throught major transitions
    like the 1992 move to a 10 SEER standard and the industry's shift in 2006 to a 13 SEER minimum. As the industry prepares for another regulatory
    change - this time the phaseout of R-22 refrigerants in favor of the more environmentally friendly R-410A - it will benefit from the versatility and efficiency of scroll compressor technology.


    7. Product qualification

    Certificate, certification, patent certificate:

    1)."Quality Management System Certification"

    2)."Shenzhen Science and Technology Enterprise Certification"

    3)."Refrigeration Equipment Air Conditioning Maintenance and Installation Enterprise Qualification Certificate"


    FAQ:


    1). What is your MOQ?
    ---Our MOQ is usually 1 set.


    2). What is your delievery time?
    ---The time of delievery is usually 5 working days after payment.
