Chiller D8DH5-500X-AWM/D 50HP Semi Hermetic Compressor

Ask Lasest Price
Brand Name :	Copeland
Model Number :	D8DH5-500X-AWM/D
Certification :	CE
Price :	Discussed
Payment Terms :	T/T, Western Union
Supply Ability :	1000000 pieces/ year
Delivery Time :	5-7 working days

Add to Cart

Product Details
Company Profile

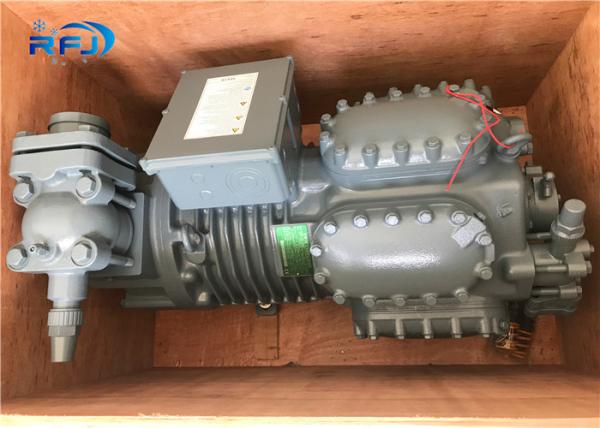

Chiller D8DH5-500X-AWM/D 50HP Semi Hermetic Compressor

Compressor D8DH5-500X-AWM/D for Chiller 50HP

Speciafication:

Standard equipment

oil pump

oil sight glass

Rotalock valves

thermal protections

Optional equipment

additional header cooling

oil pressure switch

crankcase heater

unload starting

capacity control

Application

high, medium and low temperatures

(R22 from 12,5 ºC to -50 ºC)

(R404A/R507 from 7 ºC to -50 ºC)

(R134a from 12,5 ºC to -20 ºC)

(R407A from 7 ºC to -45 ºC)

The 4S, 6S & 8S compressors have an internal capacity control, they work on the principle of blocking the suction

gas passage to two or more cylinders. They require the use of a special cylinder head and a control valve with

solenoid coil. These items may be ordered installed at the factory or in a kit form for later installation.

The suction port of the valve plate will be closed by a control piston (blocked suction). To prevent transport damage

the solenoid valve is supplied loose and the cylinder head is fitted with a shipping plate, therefore the shipping plate

with gasket must be removed and the solenoid valve with new gasket mounted. Do not put the compressor into

operation with the shipping plate this could result in erratic operation of the control piston and inadequate cooling

capacity.

Compressor model	D8DH5-500X-AWM/D
Application	HVAC
Horse Power	50HP
Net weight	376kg
Gross weight	430kg
