Expansion Thermostatic Valves TS2 068Z3400 R404A R507 Refrigeration Parts CE/ROHS/FCC/SGS

Ask Lasest Price
Brand Name :	original
Model Number :	Ts2 068Z400
Certification :	CE/ROHS/FCC/SGS
Price :	discussed
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	5,000pcs per month
Delivery Time :	7-10 working days after received your payment

Add to Cart

Product Details
Company Profile

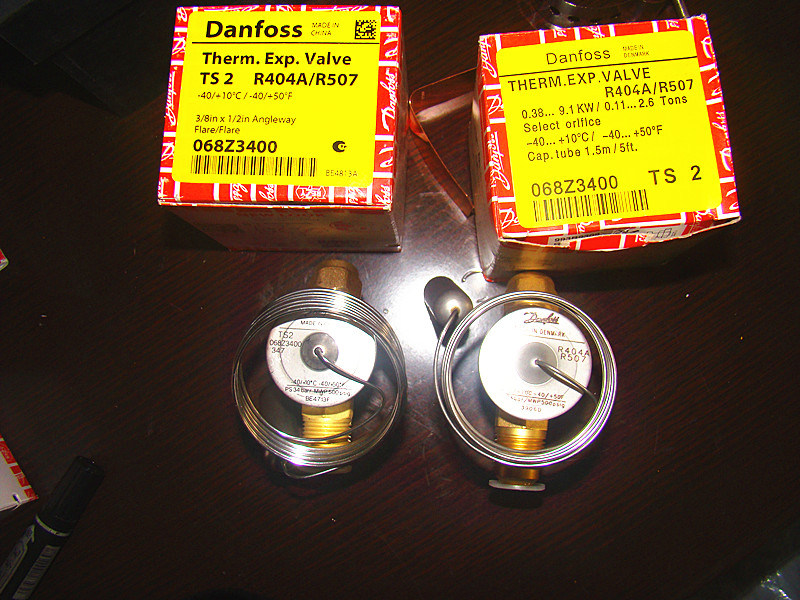

Expansion Thermostatic Valves TS2 068Z3400 R404A R507 Refrigeration Parts CE/ROHS/FCC/SGS

Expansion Thermostatic Valves TS2 068Z400 R404A R507
Regriratant: R404A/R507

Specifications:

1. Regriratant:R404A/R507/R22/R134a/R12/R502

2.Thermostatic expansion valve regulate the flow of refrigerant liquid into The evaporator.

3.The flow is controlled by the valve is thermal bulb which is Attached to the suction line at the outlet of the evaporator.

4.The thermal Bulb senses the evaporator heat and adjusts the valve to admit refrigerant Liquid in accordance with the refrigerating load.

TX Valves
Model T2 & TE2 (with Interchangeable Orifice Assembly)
Part Number	Refrigerant	Model	Connections	Equaliser Connection
Range N: -40° to +10°C – without MOP
068Z3400	R404A/R507	TS2	3/8" x 1/2" Fl.	INT.
068Z3403	R404A/R507	TES2	3/8" x 1/2" Fl.	EXT 1/4" FL
068Z3206	R22	TX2	3/8" x 1/2" Fl.	INT.
068Z3209	R22	TEX2	3/8" x 1/2" Fl.	EXT 1/4" FL
068Z3346	R134a	TN2	3/8" x 1/2" Fl.	INT.
068Z3348	R134a	TEN2	3/8" x 1/2" Fl.	EXT 1/4" FL
068Z3202	R12	TF2	3/8" x 1/2" Fl.	INT.
068Z3204	R12	TEF2	3/8" x 1/2" Fl.	EXT 1/4" FL
068Z3212	R502	TY2	3/8" x 1/2" Fl.	INT.
068Z3215	R502	TEY2	3/8" x 1/2" Fl.	EXT 1/4" FL
068Z3414	R404A/R507	TS2	3/8" x 1/2" Fl.	INT.
068Z3415	R404A/R507	TES2	3/8" Fl. x 1/2" ODF	EXT 1/4" FL
068Z3281	R22	TX2	3/8" Fl. x 1/2" ODF	INT.
068Z3284	R22	TEX2	3/8" Fl. x 1/2" ODF	EXT 1/4" FL
068Z3383	R134a	TN2	3/8" Fl. x 1/2" ODF	INT.
068Z3385	R134a	TEN2	3/8" Fl. x 1/2" ODF	EXT 1/4" FL
Range N: -40° to +10°C – with MOP
068Z3402	R404A/R507	TS2	3/8" x 1/2" Fl.	INT.
068Z3405	R404A/R507	TES2	3/8" x 1/2" Fl.	EXT 1/4" FL
068Z3208	R22	TX2	3/8" x 1/2" Fl.	INT
068Z3211	R22	TEX2	3/8" x 1/2" Fl.	EXT 1/4" FL
068Z3347	R134a	TN2	3/8" x 1/2" Fl.	INT
068Z3349	R134a	TEN2	3/8" x 1/2" Fl.	EXT 1/4" FL
Range NM: -40° to -5°C – with MOP
068Z3225	R22	TEX2	3/8" x 1/2" Fl.	EXT 1/4" FL
Range NL: -40° to -15°C – with MOP
068Z3408	R404A/R507		TS2 3/8" x 1/2" Fl.	INT
068Z3409	R404A/R507	TES2	3/8" x 1/2" Fl.	EXT 1/4" FL
068Z3226	R22	TX2	3/8" x 1/2" Fl.	INT
068Z3227	R22	TEX2	3/8" x 1/2" Fl.	EXT 1/4" FL
068Z3369	R134a	TN2	3/8" x 1/2" Fl.	INT
068Z3370	R134a	TEN2	3/8" x 1/2" Fl.	EXT 1/4"
068Z3430	R404	TES2	3/8" Fl. x 1/2" ODF	EXT 1/4" FL
Range B: -60° to -25°C – with MOP
068Z3410	R404A	TS2	3/8" x 1/2" Fl.	INT
068Z3411	R404A	TES2	3/8" x 1/2" Fl.	EXT 1/4" FL
068Z3232	R502	TY2	3/8" x 1/2" Fl.	INT
068Z3233	R502	TEY	3/8" x 1/2" Fl.	EXT 1/4" FL
068Z3420	R404	TS2	3/8" Fl. x 1/2" ODF INT
Range B: -60° to -25°C – without MOP
068Z3404	R404A	TES2	3/8" x 1/2" Fl.	EXT 1/4" FL
